Types of MIDI Cables and Connectors

MIDI or Musical Instrument Digital Interface is one of the essential technology for musicians, producers, and composers worldwide.

It allows musical instruments to communicate with audio interfaces, mixers, and computers used to record music and even manipulate it after the recording.

However, there are multiple types of MIDI cables and connectors available on the market, and it can be challenging to choose the right one for your specific needs.

That’s why, I’ve come up with this guide. In this guide, I will give you the information of the various types of MIDI cables and connectors, with their unique features.

This guide will help you to choose the right MIDI cable and connector depending on your own needs.

So, without further ado, let’s start this guide.

Read also,

Basic MIDI Connection

MIDI (Musical Instrument Digital Interface), is a protocol widely used in music production technology that allows us to record the signals from digital musical instruments such as Synths, MIDI Keyboards, etc, via an audio interface, mixer, and other music production devices.

Disclosure: This post may contain affiliate links, which means we may receive a commission if you click a link and purchase something that we recommended. Read more about Affiliate disclosure here.

Music producers use it for the creation, manipulation, and transmission of musical data, such as notes, velocities, and control signals.

MIDI makes it possible to compose, record, and edit music with unparalleled precision, accuracy, and flexibility.

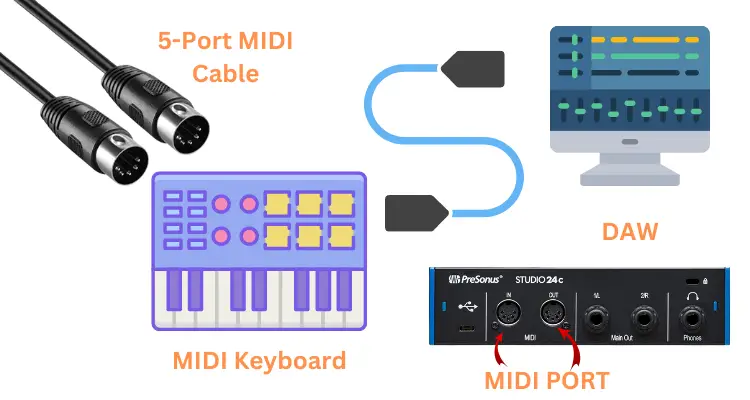

A basic MIDI cable is made of 2 way male 5-Pin TNP MIDI connectors and female TNP MIDI ports on the host and client devices. This cable carries data in the form of digital signals, which are converted to sound with the help of VST instruments installed in the computer.

Basic MIDI Connection

MIDI cable carries data such as note-on and note-off messages, pitch bend, modulation, system messages like timing, synchronization, and other functions of the connected musical instrument.

4 Types of MIDI Cables

There are 4 types of MIDI cables available in the market. Each one has its unique features, advantages, and disadvantages.

Understanding these 4 types of MIDI cables can help you to select the right cable for your specific setup, ensuring that data accuracy is transmitted between devices.

Let’s discuss them one by one.

First off,

1. MIDI 5-pin DIN Cable

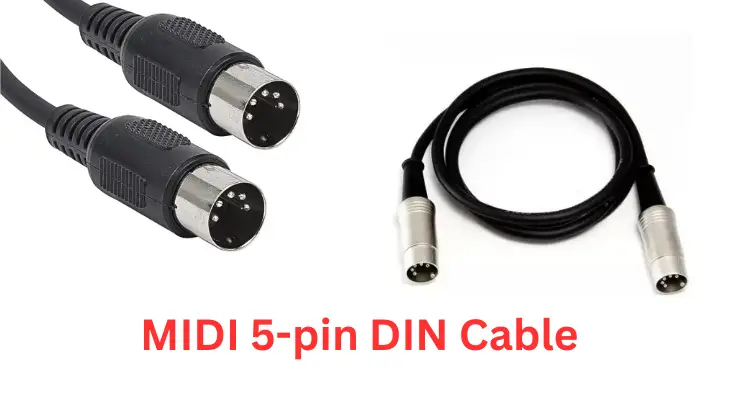

MIDI 5-pin DIN Cable

The 5-pin DIN connector is the most common type of MIDI connector used to transmit digital signals between musical devices.

This cable is built with 5-pin DIN connectors, which is a standard connector type for MIDI cables. MIDI 5-pin DIN cables have been used for MIDI connection since the 1980s and are still widely used by musicians today.

It is a unidirectional cable, means the data is transmitted in one direction only, from the transmitting device to the receiving device. That’s why you will find 2 ports in musical devices, one for the input signal and the other for the output signal.

It is a low-latency cable so there is less delay between the signals.

Pro tip: To play music on the right timing and tempo, the latency should be minimum otherwise you will face trouble in syncing with other instruments and vocals. When it comes to low latency, 5-pin DIN MIDI cables work well.

Here are some of the features of MIDI 5-pin DIN cables.

  • Standard connector type: As I told above the 5-pin DIN connector is a standard connector type for MIDI cables. It is widely available and compatible with a wide range of musical devices.
  • Unidirectional cable type: MIDI 5-pin DIN cables transmit data in one direction only, from the transmitting device to the receiving device. That’s why you will find 2 ports in musical devices, one for the input signal and the other for the output signal.
  • Low latency: MIDI 5-pin DIN cables have low latency, which means, there is minimal delay between sent and received signals. I always use this cable type for MIDI applications.
  • Reliable in Long Distance Operation: When it comes to long-distance data transfer this MIDI cable type works seamlessly without DATA loss or interference.
  • Inexpensive: Compared to other MIDI cable types, MIDI 5-pin DIN cables are inexpensive and widely available in the market.

2. USB MIDI Cable

USB MIDI cables allow you to connect your electronic musical instruments to a computer or other USB-enabled devices such as a mixer etc, using a USB connection.

USB MIDI cables became popular in recent years. Its Versatility and ease of use and USB as the common connection type in computers make USB MIDI cable a popular type of MIDI cable in the music production world.

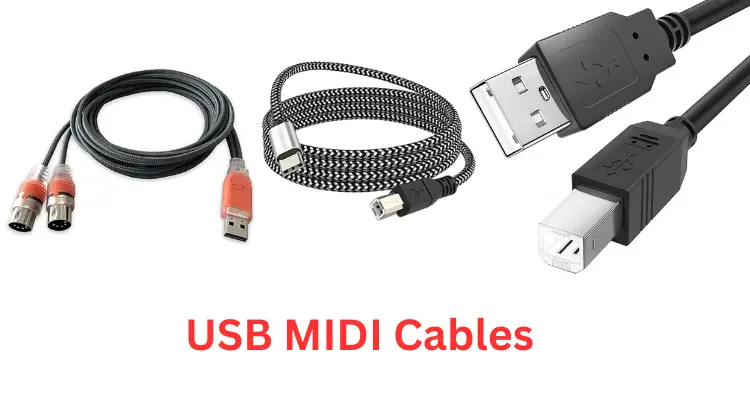

usb midi cable

Here are the features of USB MIDI cables you should know about:

  • Versatility: USB MIDI cables are highly versatile and can be used with a wide range of musical instruments, such as keyboards, drum machines, and synthesizers and it’s a common port in computers.
  • Plug and play: Many USB MIDI cables come with “plug and play,” feature which means they do not require any additional drivers or software installation to run on your computer.
  • Bi-directional: Unlike traditional MIDI 5-pin DIN cables, USB MIDI cables are bi-directional, which means they can transmit data in both directions. So, you can use only one USB cable for the both input and output signal.
  • High-speed data transfer rate: USB MIDI cables use a high-speed USB connection such as USB 2.0 and USB 3.0 to transmit data. A high data transfer rate assures low latency hence it is widely used by musicians. As I told you above low latency is crucial for musicians to sync their play with other instruments and vocals.
  • Compact and portable: USB MIDI cables are usually small and lightweight. They are highly portable and easy to use on the go.

3. FireWire MIDI Cable

Another type of MIDI cable is FireWire MIDI Cable. Firewire is known for its high-speed data transfer rate.

However, it’s not as fast as DIN type and USB MIDI cables.

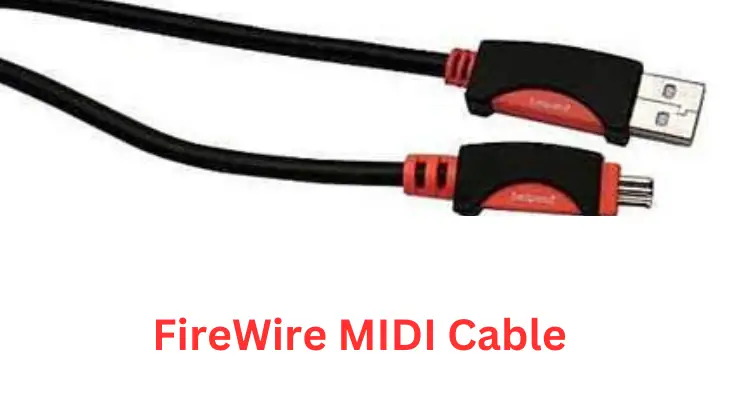

FireWire MIDI Cable

Features

High-Speed Data Transfer: The high-speed data transfer feature allows for real-time, low-latency communication between devices.

This makes FireWire MIDI Cables ideal for professional musicians and producers who require precise timing and synchronization with other musical instruments.

MIDI and audio transfer simultaneously: The second advantage of FireWire MIDI Cables is the ability to transmit both MIDI data and audio signals simultaneously.

This is really a great feature.

FireWire MIDI Cables can be used to connect MIDI devices to computers or digital audio workstations (DAWs), allowing for seamless integration of MIDI and audio data via Firewire audio interfaces and independent firewire MIDI cables.

But FireWire MIDI Cables are not widely used as other types of MIDI cables, such as USB MIDI cables.

That’s why not all MIDI devices may be compatible with FireWire MIDI Cables, and you may need to purchase additional adapters or interfaces to connect your devices.

However, FireWire MIDI Cable offers a reliable, high-speed connection for MIDI data transmission. YOu can give it a try if your MIDI instrument supports Firewire MIDI.

4. Ethernet MIDI Cable

Ethernet MIDI Cable is another type of MIDI cable that uses Ethernet network(LAN) to transmit MIDI data between devices.

Unlike traditional MIDI cables, such as DIN-type MIDI cables or USB MIDI which use physical connections between devices, Ethernet MIDI Cables offer several unique features and advantages to users.

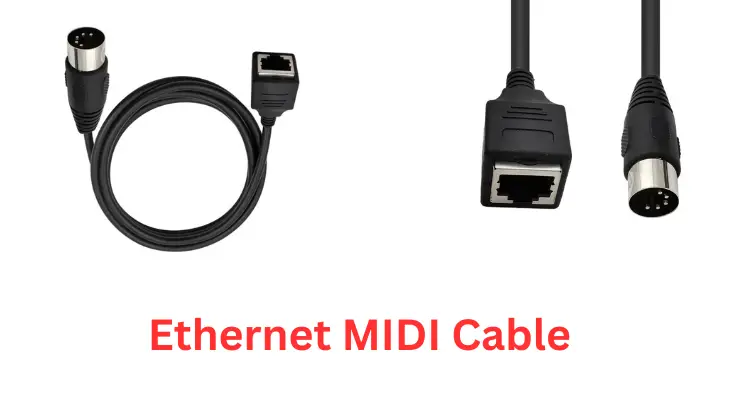

Ethernet MIDI Cable

Features

  • Long-distance transmission: Ethernet MIDI cables are generally used to transmit MIDI data over long distances without signal degradation. It’s a part of MADI recording systems.
  • Network connectivity: Ethernet MIDI cables uses LAN or local area network connection to enable communication between MIDI devices.
  • Multiple device support: One of the best features of Ethernet MID cables is you can use multiple MIDI devices to a single network switch or router.
  • Real-time communication: It provides high-speed data transfer rates for real-time communication maintaining minimal latency.

Ethernet MIDI cables offer a reliable and versatile communication solution for MIDI data transmission over Ethernet networks.

It is able to transmit MIDI data over long distances without signal degradation maintaining high-speed data transfer rates for real-time communication with minimal latency.

However, You may require additional hardware or software for setup and configuration to use Ethernet LAN as a MIDI cable.

Wireless MIDI Connections

With the wide impact of technology on the music industry now we have also cable-free ways to transmit MIDI data between our devices.

These connections use Bluetooth or Wi-Fi technology to establish a wireless link between devices, enabling MIDI data to be transmitted in real-time without the need for physical cables such as DIN type, or USB MIDI cables.

However, you may experience some latency or signal dropout. But wireless MIDI connections offer greater flexibility and mobility to your setup, and allow you to move around freely without the need for a physical connection.

As the popularity of wireless MIDI connections grows, there are now dedicated wireless MIDI adapters and interfaces available to make it easier to incorporate wireless MIDI into your workflow.

Let me show you the two major types of wireless MIDI connections.

Bluetooth MIDI Connection

Bluetooth MIDI is a widely used MIDI connection in the last few years. You will find this connection in all modern MIDI devices.

Here are some of the features of Bluetooth MIDI.

  • Wireless connectivity: Bluetooth MIDI allows you to connect your MIDI devices wirelessly, without the hassle of connecting physical MIDI cables.
  • Low power consumption: Bluetooth MIDI operates at low power so you can save battery power on your devices. It is ideal for battery-powered devices like portable keyboards or controllers.
  • Connect multiple devices: You can easily connect multiple MIDI devices to a single Bluetooth host device, such as your computer or smartphone.
  • Real-time communication: Bluetooth MIDI provides you with a high-speed data transfer rate for real-time communication with other devices which ultimately low latency.
  • Easy setup: There is a simple and easy setup process. There is no need for drivers or software on most devices.
  • Range: Bluetooth MIDI has a range of up to 10 meters. It is suitable for use in small to medium-sized control rooms and even on stage.
  • Affordable: Bluetooth MIDI is generally more affordable than physical MIDI cables.

Wi-Fi MIDI Connection

One step ahead, Wi-Fi MIDI can transmit MIDI data wirelessly over your home network or a dedicated Wi-Fi connection maintaining a high-speed data transfer rate with low latency of signals.

Here are some features of Wi-Fi MIDI.

  • Extended range: Wi-Fi MIDI offers a much larger range than Bluetooth MIDI, which allows you to play and control your devices from a larger distance.
  • High stability: Wi-Fi MIDI is more stable than Bluetooth MIDI, with minimal latency and no signal dropout.
  • Multi-device support: It allows you to connect multiple MIDI devices to a single Wi-Fi network, providing greater flexibility in your setup.
  • Compatibility: Wi-Fi MIDI is compatible with most modern MIDI devices and there are adapters or interfaces available to connect to old MIDI equipment.
  • Low latency: Wi-Fi MIDI has low latency, which makes it suitable for real-time performance and recording.

MIDI Interfaces Vs MIDI Adapters

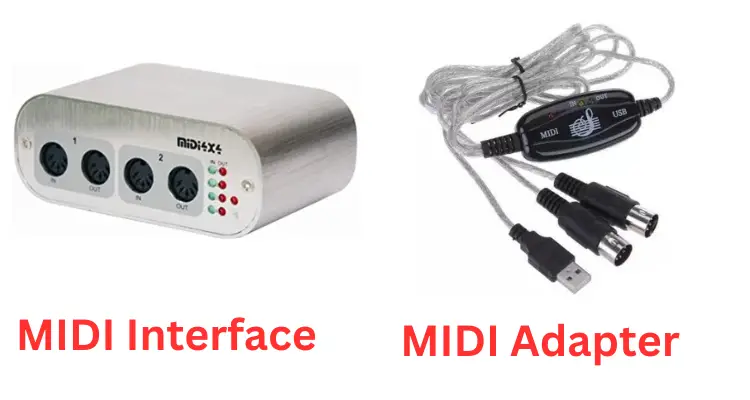

MIDI Interface Vs MIDI Adapter

MIDI interfaces and MIDI adapters are 2 different types of devices used to connect MIDI instruments and equipment to computers and other MIDI enabled devices.

However, both are used for the same purpose, there are some basic differences between them.

MIDI interfaces are like audio interfaces that convert the MIDI signals from musical instruments and equipment into digital signals and send to computers and other devices.

MIDI interfaces generally come with multiple MIDI ports, that allows you to connect several MIDI devices simultaneously. They have some other features like MIDI routing, signal processing and wordclock sync.

On the other hand, MIDI connectors are simple in structure that allows you to connect a MIDI device to a computer via MIDI or USB ports. They are generally smaller in size and not as expensive as MIDI interfaces. The reason is they usually only have one or 2 MIDI ports, one for input and other for output.

Benefits of MIDI Connection in Music Production

MIDI is one of the most important aspect for digital music production. It offers several benefits in the process of music production.

  1. Versatility: MIDI can be used to connect various electronic instruments, including synthesizers, drum machines, and samplers. It allows you to easily create, edit and manipulate your music. It is actually a versatile tool for a musician.
  2. Precision: MIDI allows you to maintain precise timing and accuracy during recording and editing music. There are several things such as velocity, timing, and duration that allows you to manipulate your music during recording. This makes it easy to correct mistakes even after recording the instrument.
  3. Non-destructive editing: As I have mentioned above, with MIDI, producers can edit and manipulate music without altering the original recording. That’s why producers can experiment with different sounds and arrangements, without having to re-record the sequence.
  4. Automation feature: MIDI allows you to automate things in the tracks, such as volume, panning, and effects. This makes it easy to create complex arrangements that would be difficult to achieve via manual playing.
  5. Interoperability: MIDI is a universal protocol used in most of the music instruments and equipment. That’s why you can share music and collaborate with others easily. It can be used to transfer MIDI data between different software and hardware platforms without creating a big file.

Bottom Line

MIDI (Musical Instrument Digital Interface) connection is an essential protocol used in music production that offers several benefits.

It is a versatile tool that allows producers to connect various electronic instruments, and achieve precise timing and accuracy. You can edit and manipulate music non-destructively, automate your music, and share with others easily.

You can use any type of MIDI connection I have mentioned above to connect your devices, if the device supports that MIDI connection type.

That’s it. Let me know in the comments what you think about the importance of MIDI connection in music production.
